Build a Multi-Tenant RAG with Fine-Grain Authorization using Motia and SpiceDB

Learn how to build a complete retrieval-augmented generation pipeline with multi-tenant authorization using Motia's event-driven framework, OpenAI embeddings, Pinecone vector search, SpiceDB permissions, and natural language querying.

If I was hard-pressed to pick my favourite computer game of all time, I'd go with Stardew Valley (sorry, Dangerous Dave). The stats from my Nintendo Profile is all the proof you need:

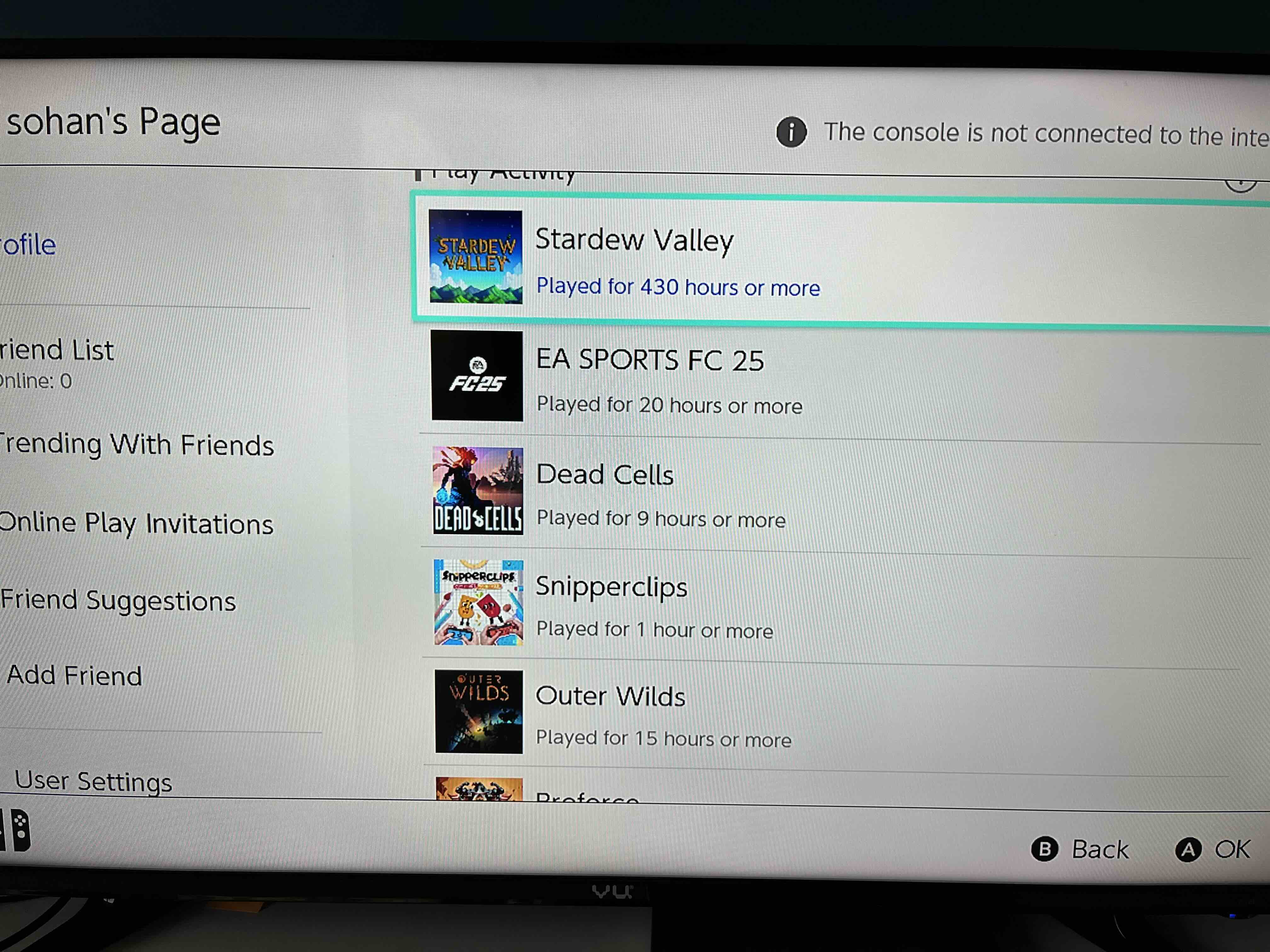

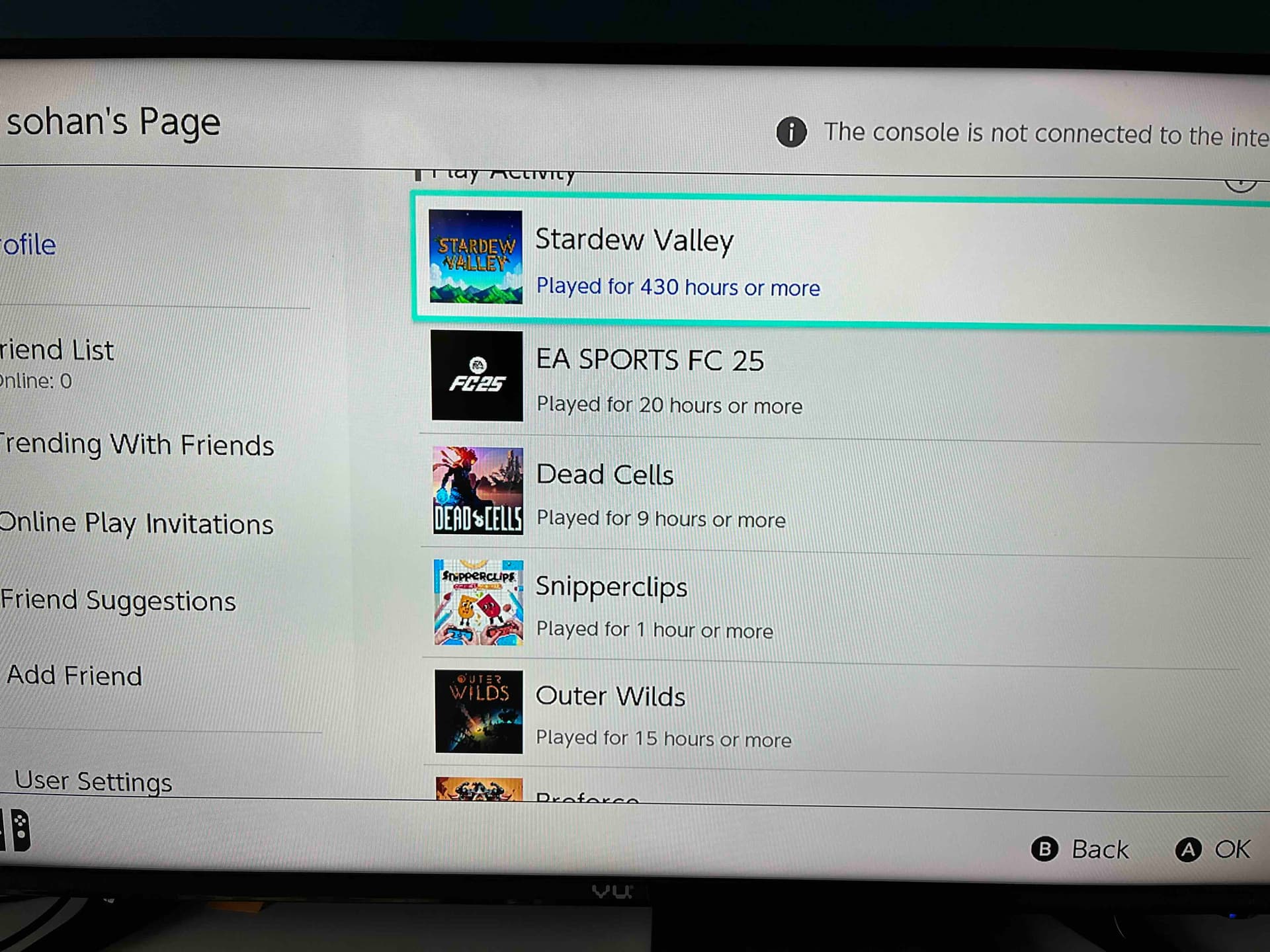

Stardew Valley sits atop with 430 hours played and in second place is Mario Kart (not pictured) with ~45 hours played. That's a significant difference, and should indicate how much I adore this game.

We've been talking about the importance of Fine-Grained Authorization and RAG recently, so when I sat down to build a sample usecase for a production-grade RAG with Fine-Grained Permissions, my immediate thought went to Stardew Valley.

For those not familiar, Stardew Valley is a farm life simulation game where players manage a farm by clearing land, growing seasonal crops, and raising animals. So I thought I could build a logbook for a large farm that one could query using natural language processing. This usecase is ideal for RAG Pipelines (a technique that uses external data to improve the accuracy, relevancy, and usefulness of a LLM model’s output).

I focused on building something that was as close to production-grade as possible (and perhaps strayed from the original intent of a single farm) where an organization can own farms and data from the farms. The farms contain harvest data and users can log and query data for the farms they're part of. This provides a sticky situation for the authorization model. How does a LLM know who has access to what data?

Here's where SpiceDB and ReBAC was vital. By using metadata to indicate where the relevant embedings came from, the RAG system returned harvest data to the user only based on what data they had access to. In fact, OpenAI uses SpiceDB for their fine-grained authorization in ChatGPT Connectors using similar techniques.

While I know my way around SpiceDB and authorization, I needed help to build out the other components for a production-grade harvest logbook. So I reached out to my friend Rohit Ghumare from Motia for his expertise. Motia.dev is a backend framework that unifies APIs, background jobs, workflows, and AI Agents into a single core primitive with built-in observability and state management

Here's a photo of Rohit and myself at Kubecon Europe in 2025

What follows below is a tutorial-style post on building a Retrieval Augmented Generation system with fine-grained authorization using the Motia framework and SpiceDB. We'll use Pinecone as our vector database, and OpenAI as our LLM.

What You'll Build

In this tutorial, you'll create a complete RAG system with authorization that:

• Stores harvest data and automatically generates embeddings for semantic search
• Splits text into optimized chunks with overlap for better retrieval accuracy
• Implements fine-grained authorization using SpiceDB's relationship-based access control
• Queries harvest history using natural language with AI-powered responses
• Returns contextually relevant answers with source citations from vector search
• Supports multi-tenant access where users only see data they have permission to access

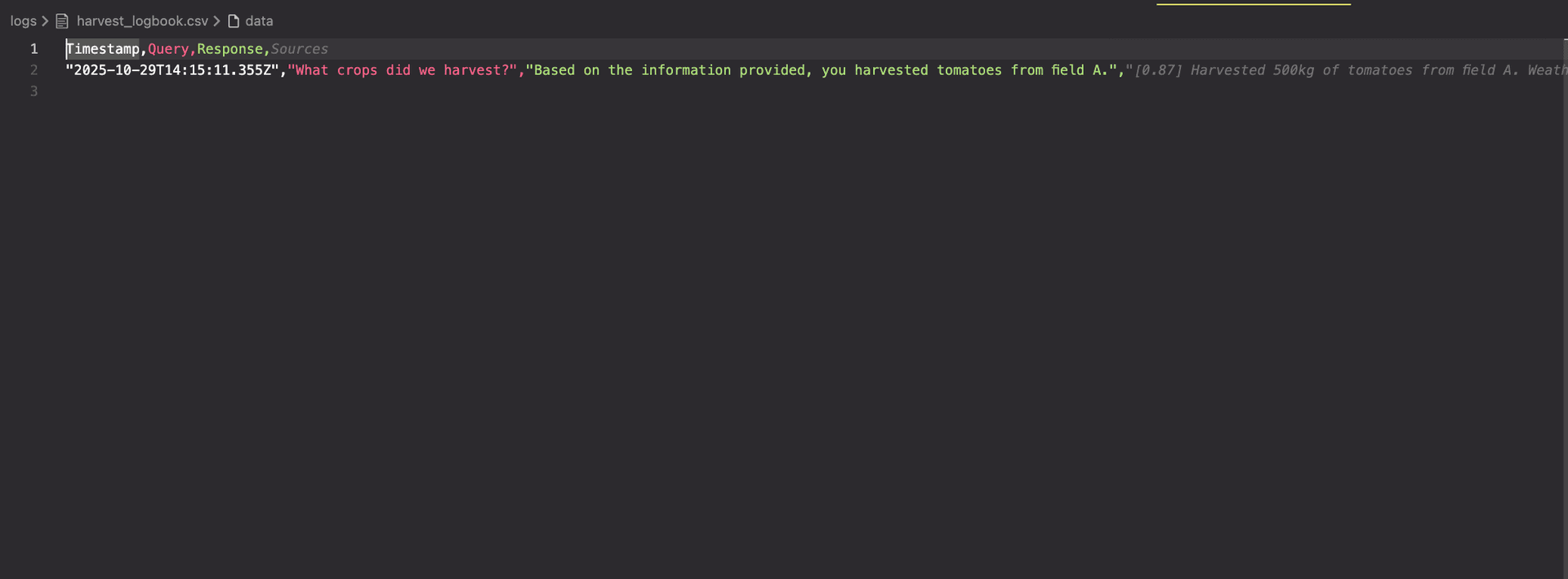

• Logs all queries and responses for audit trails in CSV or Google Sheets
• Runs as an event-driven workflow orchestrated through Motia's framework

By the end of the tutorial, you'll have a complete system that combines semantic search with multi-tenant authorization.

Prerequisites

Before starting the tutorial, ensure you have:

• OpenAI API key for embeddings and chat
• Pinecone account with an index created (1536 dimensions, cosine metric)
• Docker installed for running SpiceDB locally

Getting Started

1. Create Your Motia Project

Create a new Motia project using the CLI:

npx motia@latest create

The installer will prompt you:

1. Template: Select Base (TypeScript)
2. Project name: Enter harvest-logbook-rag
3. Proceed? Type Yes

Navigate into your project:

cd harvest-logbook-rag

Your initial project structure:

harvest-logbook-rag/
├── src/
│   └── services/
│       └── pet-store/
├── steps/
│   └── petstore/
├── .env
└── package.json

The default template includes a pet store example. We'll replace this with our harvest logbook system. For more on Motia basics, see the Quick Start guide.

2. Install Dependencies

Install the SpiceDB client for authorization:

npm install @authzed/authzed-node

This is the only additional package needed.

3. Setup Pinecone

Pinecone will store the vector embeddings for semantic search.

Create a Pinecone Account

1. Go to app.pinecone.io and sign up
2. Create a new project

Create an Index

1. Click Create Index

2. Configure:

   • Name: harvest-logbook (or your preference)
   • Dimensions: 1536 (for OpenAI embeddings)
   • Metric: cosine

3. Click Create Index

Get Your Credentials

1. Go to API Keys in the sidebar
2. Copy your API Key
3. Go back to your index
4. Click the Connect tab
5. Copy the Host (looks like: your-index-abc123.svc.us-east-1.pinecone.io)

Save these for the next step.

4. Setup SpiceDB

SpiceDB handles authorization and access control for the system.

Start SpiceDB with Docker

Run this command to start SpiceDB locally:

docker run -d \
  --name spicedb \
  -p 50051:50051 \
  authzed/spicedb serve \
  --grpc-preshared-key "sometoken"

Verify SpiceDB is Running

Check that the container is running:

docker ps | grep spicedb

You should see output similar to:

6316f6cb50b4   authzed/spicedb   "spicedb serve --grp…"   31 seconds ago   Up 31 seconds   0.0.0.0:50051->50051/tcp   spicedb

SpiceDB is now running on localhost:50051 and ready to handle authorization checks.

5. Configure Environment Variables

Create a .env file in the project root:

# OpenAI (Required for embeddings and chat)
OPENAI_API_KEY=sk-proj-xxxxxxxxxxxxx

# Pinecone (Required for vector storage)
PINECONE_API_KEY=pcsk_xxxxxxxxxxxxx
PINECONE_INDEX_HOST=your-index-abc123.svc.us-east-1.pinecone.io

# SpiceDB (Required for authorization)
SPICEDB_ENDPOINT=localhost:50051
SPICEDB_TOKEN=sometoken

# LLM Configuration (OpenAI is default)
USE_OPENAI_CHAT=true

# Logging Configuration (CSV is default)
USE_CSV_LOGGER=true

Replace the placeholder values with your actual credentials from the previous steps.

6. Initialize SpiceDB Schema

SpiceDB needs a schema that defines the authorization model for organizations, farms, and users.

Create the Schema File

Create src/services/harvest-logbook/spicedb.schema with the authorization model. A SpiceDB schema defines the types of objects found your application, how those objects can relate to one another, and the permissions that can be computed off of those relations.

Here's a snippet of the schema that defines user, organization and farm and the relations and permissions between them.

definition user {}

definition organization {
    relation admin: user
    relation member: user

    permission view = admin + member
    permission edit = admin + member
    permission query = admin + member
    permission manage = admin
}

definition farm {
    relation organization: organization
    relation owner: user
    relation editor: user
    relation viewer: user

    permission view = viewer + editor + owner + organization->view
    permission edit = editor + owner + organization->edit
    permission query = viewer + editor + owner + organization->query
    permission manage = owner + organization->admin
}

View the complete schema on GitHub

The schema establishes:

• Organizations with admins and members
• Farms with owners, editors, and viewers
• Harvest entries linked to farms
• Permission inheritance (org members can access farms in their org)

Create Setup Scripts

Create a scripts/ folder and add three files:

scripts/setup-spicedb-schema.ts - Reads the schema file and writes it to SpiceDB
View on GitHub

scripts/verify-spicedb-schema.ts - Verifies the schema was written correctly
View on GitHub

scripts/create-sample-permissions.ts - Creates sample users and permissions for testing
View on GitHub

Install Script Runner

npm install -D tsx

Add Scripts to package.json

"scripts": {
  "spicedb:setup": "tsx scripts/setup-spicedb-schema.ts",
  "spicedb:verify": "tsx scripts/verify-spicedb-schema.ts",
  "spicedb:sample": "tsx scripts/create-sample-permissions.ts"
}

Run the Setup

# Write schema to SpiceDB
npm run spicedb:setup

You should see output confirming the schema was written successfully:

Verify it was written correctly:

npm run spicedb:verify

This displays the complete authorization schema showing all definitions and permissions:

The output shows:

• farm definition with owner/editor/viewer roles
• harvest_entry definition linked to farms
• organization definition with admin/member roles
• query_session definition for RAG queries
• Permission rules for each resource type

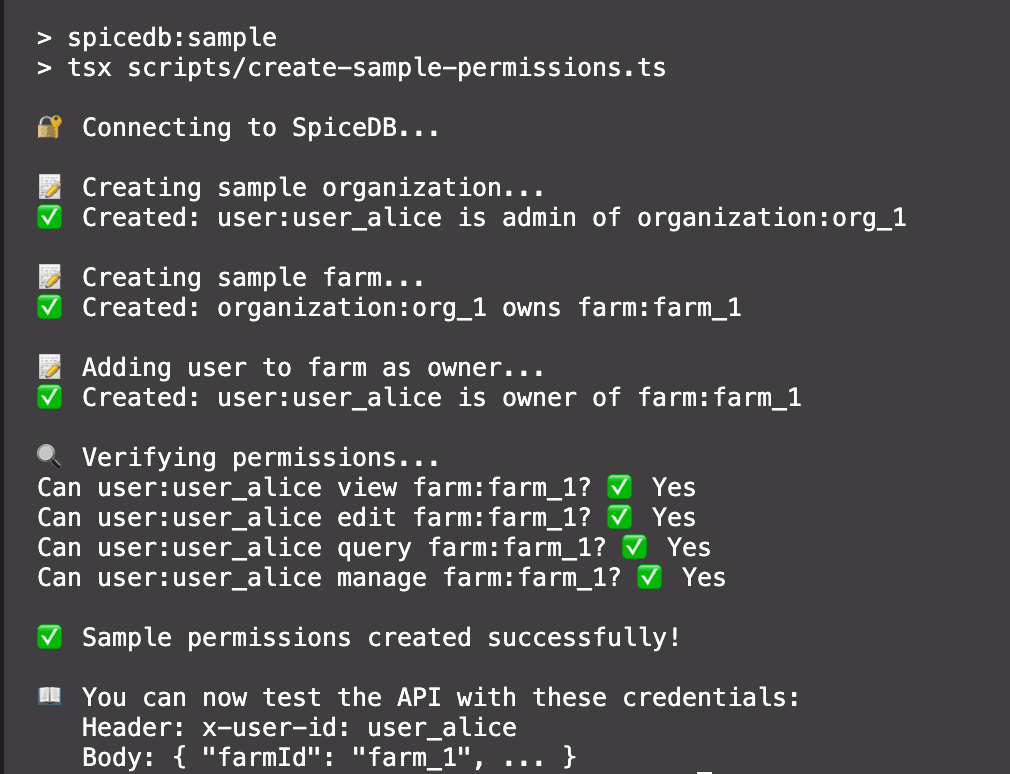

Create sample user (user_alice as owner of farm_1):

npm run spicedb:sample

This creates user_alice as owner of farm_1, ready for testing.

Your authorization system is now ready.

7. Start Development Server

Start the Motia development server:

npm run dev

The server starts at http://localhost:3000. Open this URL in your browser to see the Motia Workbench.

You'll see the default pet store example. We'll replace this with our harvest logbook system in the next sections.

Your development environment is now ready. All services are connected:

• Motia running on localhost:3000
• Pinecone index created and connected
• SpiceDB running with schema loaded
• Sample permissions created (user_alice owns farm_1)

Exploring the Project

Before we start building, let's understand the architecture we're creating.

System Architecture

┌─────────────────────────────────────────────────────────────┐
│  POST /harvest_logbook                                      │
│  (Store harvest data + optional query)                      │
└─────────┬───────────────────────────────────────────────────┘
          │
          ├─→ Authorization Middleware (SpiceDB)
          │   - Check user has 'edit' permission on farm
          │
          ├─→ ReceiveHarvestData Step (API)
          │   - Validate input
          │   - Emit events
          │
          ├─→ ProcessEmbeddings Step (Event)
          │   - Split text into chunks (400 chars, 40 overlap)
          │   - Generate embeddings (OpenAI)
          │   - Store vectors (Pinecone)
          │
          └─→ QueryAgent Step (Event) [if query provided]
              - Retrieve similar content (Pinecone)
              - Generate response (OpenAI/HuggingFace)
              - Emit logging event
              │
              └─→ LogToSheets Step (Event)
                  - Log query & response (CSV/Sheets)

The RAG Pipeline

Our system processes harvest data through these stages:

1. API Entry - Receive harvest data via REST endpoint
2. Text Chunking - Split content into overlapping chunks (400 chars, 40 overlap)
3. Embedding Generation - Convert chunks to vectors using OpenAI
4. Vector Storage - Store embeddings in Pinecone for semantic search
5. Query Processing - Search vectors and generate AI responses
6. Audit Logging - Log all queries and responses

Event-Driven Architecture

The system uses Motia's event-driven model:

• API Steps handle HTTP requests
• Event Steps process background tasks
• Steps communicate by emitting and subscribing to events
• Each step is independent and can be tested separately

Authorization Layer

Every API request passes through SpiceDB authorization:

• Users have relationships with resources (owner, editor, viewer)
• Permissions are checked before processing requests
• Multi-tenant by design (users only access their farms)

What We'll Build

We'll create five main steps:

1. ReceiveHarvestData - API endpoint to store harvest entries
2. ProcessEmbeddings - Event handler for generating and storing embeddings
3. QueryAgent - Event handler for AI-powered queries
4. QueryOnly - Separate API endpoint for querying without storing data
5. LogToSheets - Event handler for audit logging

Each component is a single file in the steps/ directory. Motia automatically discovers and connects them based on the events they emit and subscribe to.

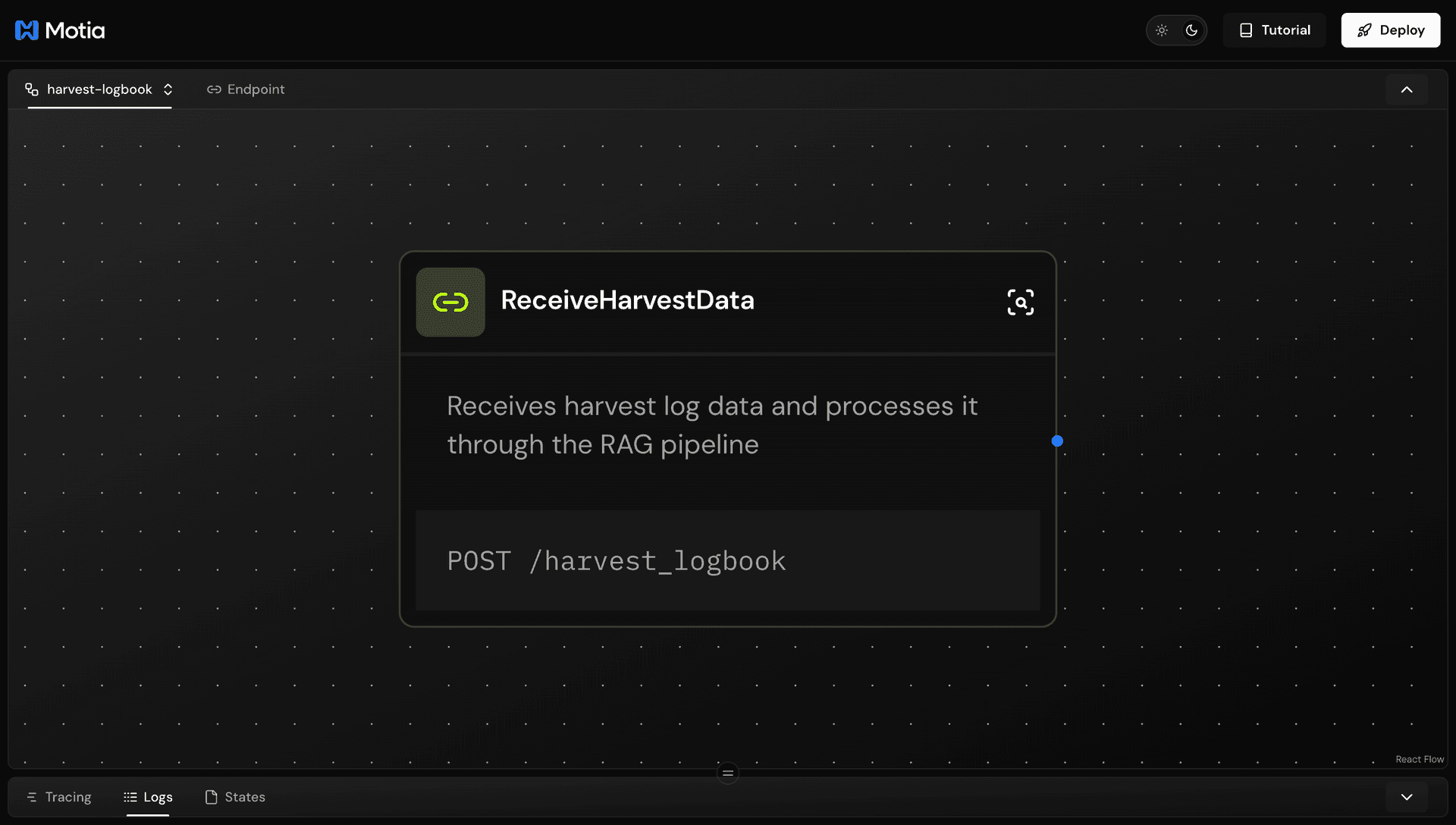

Step 1: Create the Harvest Entry API

What We're Building

In this step, we'll create an API endpoint that receives harvest log data and triggers the processing pipeline. This is the entry point that starts the entire RAG workflow.

Why This Step Matters

Every workflow needs an entry point. In Motia, API steps serve as the gateway between external requests and your event-driven system. By using Motia's api step type, you get automatic HTTP routing, request validation, and event emission, all without writing boilerplate server code. When a farmer calls this endpoint with their harvest data, it validates the input, checks authorization, stores the entry, and emits events that trigger the embedding generation and optional query processing.

Create the Step File

Create a new file at steps/harvest-logbook/receive-harvest-data.step.ts.

The complete source code for all steps is available on GitHub. You can reference the working implementation at any time.

View the complete Step 1 code on GitHub →

Now let's understand the key parts you'll be implementing:

Input Validation

const bodySchema = z.object({
  content: z.string().min(1, 'Content cannot be empty'),
  farmId: z.string().min(1, 'Farm ID is required for authorization'),
  metadata: z.record(z.any()).optional(),
  query: z.string().optional()
});

Zod validates that requests include the harvest content and farm ID. The query field is optional - if provided, the system will also answer a natural language question about the data after storing it.

Step Configuration

export const config: ApiRouteConfig = {
  type: 'api',
  name: 'ReceiveHarvestData',
  path: '/harvest_logbook',
  method: 'POST',
  middleware: [errorHandlerMiddleware, harvestEntryEditMiddleware],
  emits: ['process-embeddings', 'query-agent'],
  bodySchema
};

• type: 'api' makes this an HTTP endpoint
• middleware runs authorization checks before the handler
• emits declares this step triggers embedding processing and optional query events
• Motia handles all the routing automatically

Authorization Check

middleware: [errorHandlerMiddleware, harvestEntryEditMiddleware]

The harvestEntryEditMiddleware checks SpiceDB to ensure the user has edit permission on the specified farm. If authorization fails, the request is rejected before reaching the handler. Authorization info is added to the request for use in the handler.

View authorization middleware →

Handler Logic

export const handler: Handlers['ReceiveHarvestData'] = async (req, { emit, logger, state }) => {
  const { content, farmId, metadata, query } = bodySchema.parse(req.body);
  const entryId = `harvest-${Date.now()}`;

  // Store entry data in state
  await state.set('harvest-entries', entryId, {
    content, farmId, metadata, timestamp: new Date().toISOString()
  });

  // Emit event to process embeddings
  await emit({
    topic: 'process-embeddings',
    data: { entryId, content, metadata }
  });
};

The handler generates a unique entry ID, stores the data in Motia's state management, and emits an event to trigger embedding processing. If a query was provided, it also emits a query-agent event.

Event Emission

await emit({
  topic: 'process-embeddings',
  data: { entryId, content, metadata: { ...metadata, farmId, userId } }
});

if (query) {
  await emit({
    topic: 'query-agent',
    data: { entryId, query }
  });
}

Events are how Motia steps communicate. The process-embeddings event triggers the next step to chunk the text and generate embeddings. If a query was provided, the query-agent event runs in parallel to answer the question using RAG.

This keeps the API response fast as it returns immediately while processing happens in the background.

Test the Step

Open the Motia Workbench and test this endpoint:

1. Click on the harvest-logbook flow
2. Find POST /harvest_logbook in the sidebar
3. Click on it to open the request panel
4. Switch to the Headers tab and add:

   {
     "x-user-id": "user_alice"
   }

5. Switch to the Body tab and add:

   {
     "content": "Harvested 500kg of tomatoes from field A. Weather was sunny.",
     "farmId": "farm_1",
     "metadata": {
       "field": "A",
       "crop": "tomatoes"
     }
   }

6. Click Send button.

You should see a success response with the entry ID. The Workbench will show the workflow executing in real-time, with events flowing to the next steps.

Step 2: Process Embeddings

What We're Building

This event handler takes the harvest data from Step 1, splits it into chunks, generates vector embeddings, and stores them in Pinecone for semantic search.

Why This Step Matters

RAG systems need to break down large text into smaller chunks for better retrieval accuracy. By chunking text with overlap and generating embeddings for each piece, we enable semantic search that finds relevant context even when queries don't match exact keywords.

This step runs in the background after the API returns, keeping the user experience fast while handling the background work of embedding generation and vector storage.

Create the Step File

Create a new file at steps/harvest-logbook/process-embeddings.step.ts.

View the complete Step 2 code on GitHub →

Now let's understand the key parts you'll be implementing:

Input Schema

const inputSchema = z.object({
  entryId: z.string(),
  content: z.string(),
  metadata: z.record(z.any()).optional()
});

This step receives the entry ID, content, and metadata from the previous step's event emission.

Step Configuration

export const config: EventConfig = {
  type: 'event',
  name: 'ProcessEmbeddings',
  subscribes: ['process-embeddings'],
  emits: [],
  input: inputSchema
};

• type: 'event' makes this a background event handler
• subscribes: ['process-embeddings'] listens for events from Step 1
• No emits - this is the end of the embedding pipeline

Text Chunking

const vectorIds = await HarvestLogbookService.storeEntry({
  id: entryId,
  content,
  metadata,
  timestamp: new Date().toISOString()
});

The service handles text splitting (400 character chunks with 40 character overlap), embedding generation via OpenAI, and storage in Pinecone. This chunking strategy ensures semantic continuity across chunks.

View text splitter service →

Embedding Generation

The OpenAI service generates 1536-dimension embeddings for each text chunk using the text-embedding-ada-002 model.

View OpenAI service →

Vector Storage

await state.set('harvest-vectors', entryId, {
  vectorIds,
  processedAt: new Date().toISOString(),
  chunkCount: vectorIds.length
});

After storing vectors in Pinecone, the step updates Motia's state with the vector IDs for tracking. Each chunk gets a unique ID like harvest-123-chunk-0, harvest-123-chunk-1, etc.

View Pinecone service →

The embeddings are now stored and ready for semantic search when users query the system.

Test the Step

Step 2 runs automatically when Step 1 emits the process-embeddings event. To test it:

1. Send a request to the POST /harvest_logbook endpoint (from Step 1)

2. In the Workbench, watch the workflow visualization

3. You'll see the ProcessEmbeddings step activate automatically

4. Check the Logs tab at the bottom to see:

   • Text chunking progress
   • Embedding generation
   • Vector storage confirmation

The step completes when you see "Successfully stored embeddings" in the logs. The vectors are now in Pinecone and ready for semantic search.

Step 3: Query Agent

What We're Building

This event handler performs the RAG query, it searches Pinecone for relevant content, retrieves matching chunks, and uses an LLM to generate natural language responses based on the retrieved context.

Why This Step Matters

This is where retrieval-augmented generation happens. Instead of the LLM generating responses from its training data alone, it uses actual harvest data from Pinecone as context. This ensures accurate, source-backed answers specific to the user's farm data.

The step supports both OpenAI and HuggingFace LLMs, giving you flexibility in choosing your AI provider based on cost and performance needs.

Create the Step File

Create a new file at steps/harvest-logbook/query-agent.step.ts.

View the complete Step 3 code on GitHub →

Now let's understand the key parts you'll be implementing:

Input Schema

const inputSchema = z.object({
  entryId: z.string(),
  query: z.string(),
  conversationHistory: z.array(z.object({
    role: z.enum(['user', 'assistant', 'system']),
    content: z.string()
  })).optional()
});

The step receives the query text and optional conversation history for multi-turn conversations.

Step Configuration

export const config: EventConfig = {
  type: 'event',
  name: 'QueryAgent',
  subscribes: ['query-agent'],
  emits: ['log-to-sheets'],
  input: inputSchema
};

• subscribes: ['query-agent'] listens for query events from Step 1
• emits: ['log-to-sheets'] triggers logging after generating response

RAG Query Process

const agentResponse = await HarvestLogbookService.queryWithAgent({
  query,
  conversationHistory
});

The service orchestrates the RAG pipeline: embedding the query, searching Pinecone for similar vectors, extracting context from top matches, and generating a response using the LLM.

View RAG orchestration service →

Vector Search

The query is embedded using OpenAI and searched against Pinecone to find the top 5 most similar chunks. Each result includes a similarity score and the original text.

View Pinecone query implementation →

LLM Response Generation

await state.set('agent-responses', entryId, {
  query,
  response: agentResponse.response,
  sources: agentResponse.sources,
  timestamp: agentResponse.timestamp
});

The LLM generates a response using the retrieved context. The system supports both OpenAI (default) and HuggingFace, controlled by the USE_OPENAI_CHAT environment variable. The response includes source citations showing which harvest entries informed the answer.

View OpenAI chat service →
View HuggingFace service →

Event Emission

await emit({
  topic: 'log-to-sheets',
  data: {
    entryId,
    query,
    response: agentResponse.response,
    sources: agentResponse.sources
  }
});

After generating the response, the step emits a logging event to create an audit trail of all queries and responses.

Test the Step

Step 3 runs automatically when you include a query field in the Step 1 request. To test it:

1. Send a request to POST /harvest_logbook with a query:

   {
     "content": "Harvested 500kg of tomatoes from field A. Weather was sunny.",
     "farmId": "farm_1",
     "query": "What crops did we harvest?"
   }

2. In the Workbench, watch the QueryAgent step activate

3. Check the Logs tab to see:

   • Query embedding generation
   • Vector search in Pinecone
   • LLM response generation
   • Source citations

The step completes when you see the AI-generated response in the logs. The query and response are automatically logged by Step 5.

Step 4: Query-Only Endpoint

What We're Building

This API endpoint allows users to query their existing harvest data without storing new entries. It's a separate endpoint dedicated purely to RAG queries.

Why This Step Matters

While Step 1 handles both storing and optionally querying data, users often need to just ask questions about their existing harvest logs. This dedicated endpoint keeps the API clean and focused - one endpoint for data entry, another for pure queries.

This separation also makes it easier to apply different rate limits or permissions between data modification and read-only operations.

Create the Step File

Create a new file at steps/harvest-logbook/query-only.step.ts.

View the complete Step 4 code on GitHub →

Now let's understand the key parts you'll be implementing:

Input Validation

const bodySchema = z.object({
  query: z.string().min(1, 'Query cannot be empty'),
  farmId: z.string().min(1, 'Farm ID is required for authorization'),
  conversationHistory: z.array(z.object({
    role: z.enum(['user', 'assistant', 'system']),
    content: z.string()
  })).optional()
});

The request requires a query and farm ID. Conversation history is optional for multi-turn conversations.

Step Configuration

export const config: ApiRouteConfig = {
  type: 'api',
  name: 'QueryHarvestLogbook',
  path: '/harvest_logbook/query',
  method: 'POST',
  middleware: [errorHandlerMiddleware, harvestQueryMiddleware],
  emits: ['query-agent']
};

• path: '/harvest_logbook/query' creates a dedicated query endpoint
• harvestQueryMiddleware checks for query permission (not edit)
• emits: ['query-agent'] triggers the same RAG query handler as Step 3

Authorization Middleware

middleware: [errorHandlerMiddleware, harvestQueryMiddleware]

The harvestQueryMiddleware checks SpiceDB for query permission. This is less restrictive than edit - viewers can query but cannot modify data.

View authorization middleware →

Handler Logic

export const handler: Handlers['QueryHarvestLogbook'] = async (req, { emit, logger }) => {
  const { query, farmId } = bodySchema.parse(req.body);
  const queryId = `query-${Date.now()}`;

  await emit({
    topic: 'query-agent',
    data: { entryId: queryId, query }
  });

  return {
    status: 200,
    body: { success: true, queryId }
  };
};

The handler generates a unique query ID and emits the same query-agent event used in Step 1. This reuses the RAG pipeline from Step 3 without duplicating code.

The API returns immediately with the query ID. The actual processing happens in the background, and results are logged by Step 5.

Test the Step

This is the dedicated query endpoint. Test it directly:

1. Click on POST /harvest_logbook/query in the Workbench
2. Add the header:

   {
     "x-user-id": "user_alice"
   }

3. Add the body:

   {
     "query": "What crops did we harvest?",
     "farmId": "farm_1"
   }

4. Click Send

You'll see a 200 OK response with the query ID. In the Logs tab, watch for:

• QueryHarvestLogbook - Authorization and query received
• QueryAgent - Querying AI agent
• QueryAgent - Agent query completed

The query runs in the background and results are logged by Step 5. This endpoint is perfect for read-only query operations without storing new data.

Step 5: Log to Sheets

What We're Building

This event handler creates an audit trail by logging every query and its AI-generated response. It supports both local CSV files (for development) and Google Sheets (for production).

Why This Step Matters

Audit logs are essential for understanding how users interact with your system. They help with debugging, monitoring usage patterns, and maintaining compliance. By logging queries and responses, you can track what questions users ask, identify common patterns, and improve the system over time.

The dual logging strategy (CSV/Google Sheets) gives you flexibility, use CSV locally for quick testing, then switch to Google Sheets for production without changing code.

Create the Step File

Create a new file at steps/harvest-logbook/log-to-sheets.step.ts.

View the complete Step 5 code on GitHub →

Now let's understand the key parts you'll be implementing:

Input Schema

const inputSchema = z.object({
  entryId: z.string(),
  query: z.string(),
  response: z.string(),
  sources: z.array(z.string()).optional()
});

The step receives the query, AI response, and optional source citations from Step 3.

Step Configuration

export const config: EventConfig = {
  type: 'event',
  name: 'LogToSheets',
  subscribes: ['log-to-sheets'],
  emits: [],
  input: inputSchema
};

• subscribes: ['log-to-sheets'] listens for logging events from Step 3
• No emits - this is the end of the workflow

Logging Service Selection

const useCSV = process.env.USE_CSV_LOGGER === 'true' || !process.env.GOOGLE_SHEETS_ID;

await HarvestLogbookService.logToSheets(query, response, sources);

The service automatically chooses between CSV and Google Sheets based on environment variables. This keeps the step code simple while supporting different deployment scenarios.

View CSV logger →
View Google Sheets service →

Error Handling

try {
  await HarvestLogbookService.logToSheets(query, response, sources);
  logger.info(`Successfully logged to ${destination}`);
} catch (error) {
  logger.error('Failed to log query response');
  // Don't throw - logging failures shouldn't break the main flow
}

The step catches logging errors without throwing. This ensures that even if logging fails, the main workflow completes successfully. Users get their query results even if the audit log has issues.

CSV Output Format

The CSV logger saves entries to logs/harvest_logbook.csv with these columns:

• Timestamp
• Query
• Response
• Sources (comma-separated)

Each entry is automatically escaped to handle quotes and commas in the content.

Test the Step

Step 5 runs automatically after Step 3 completes. To verify it's working:

1. Run a query using POST /harvest_logbook/query
2. Check the Logs tab for LogToSheets entries
3. Verify the CSV file was created:

   cat logs/harvest_logbook.csv

You should see your query and response logged with a timestamp. Each subsequent query appends a new row to the CSV file.

Testing the System

Now that all steps are built, let's test the complete workflow using the Motia Workbench.

Start the Server

npm run dev

Open http://localhost:3000 in your browser to access the Workbench.

Test 1: Store Harvest Data

1. Select the harvest-logbook flow from the dropdown
2. Find the POST /harvest_logbook endpoint in the workflow
3. Click on it to open the request panel
4. Add the authorization header:

   {
     "x-user-id": "user_alice"
   }

5. Set the request body:

   {
     "content": "Harvested 500kg of tomatoes from field A. Weather was sunny, no pest damage observed.",
     "farmId": "farm_1",
     "metadata": {
       "field": "A",
       "crop": "tomatoes",
       "weight_kg": 500
     }
   }

6. Click Play Button

Watch the workflow execute in real-time. You'll see:

• Authorization check passes (user_alice has edit permission)
• Text chunked into embeddings
• Vectors stored in Pinecone
• Success response returned

Test 2: Query the Data

1. Find the POST /harvest_logbook/query endpoint
2. Add the authorization header:

   {
     "x-user-id": "user_alice"
   }

3. Set the request body:

   {
     "farmId": "farm_1",
     "query": "What crops did we harvest recently?"
   }

4. Click Send

Watch the RAG pipeline execute:

• Query embedded via OpenAI
• Similar vectors retrieved from Pinecone
• AI generates response with context
• Query and response logged to CSV

Test 3: Verify Authorization

Try querying as a user without permission:

1. Use the same query endpoint
2. Change the header:

   {
     "x-user-id": "user_unauthorized"
   }

3. Click Send

You'll see a 403 Forbidden response to verify if authorization works correctly. You can also create different users with different levels of access and see fine-grained authorization in action.

View the Logs

Check the audit trail:

cat logs/harvest_logbook.csv

You'll see all queries and responses logged with timestamps.

The Workbench also provides trace visualization showing exactly how data flows through each step, making debugging straightforward.

Conclusion

You've built a complete RAG system with multi-tenant authorization using Motia's event-driven framework. You learned how to:

1. Build event-driven workflows with Motia steps
2. Implement RAG with text chunking, embeddings, and vector search
3. Add fine-grained authorization using SpiceDB's relationship model
4. Handle async operations with event emission
5. Integrate multiple services (OpenAI, Pinecone, SpiceDB)

Your system now handles:

• Semantic search over harvest data with AI-powered embeddings
• Natural language querying with contextually relevant answers
• Multi-tenant access control with role-based permissions
• Event-driven processing for fast API responses
• Audit logging for compliance and debugging
• Flexible LLM options (OpenAI or HuggingFace)

Your RAG system is ready to help farmers query their harvest data naturally while keeping data secure with proper authorization.

Final Thoughts

This was a fun exercise in tackling a complex authorization problem and also building something production-grade. I also got to play out some of my Stardew Valley fancies IRL. Maybe it's time I actually move to a cozy farm and grow my own crops (so long as the farm has a good Internet connection!)

The repository can be found on the Motia GitHub.

Feel free to reach out to us on LinkedIn or jump into the SpiceDB Discord if you have any questions. Happy farming!
