The Day Benjamin Franklin Broke our CI

/assets/team/joey-schorr.jpg
November 7, 2024|9 min read

Growing up in Philadelphia and attending the University of Pennsylvania, I was immersed in stories about Benjamin Franklin and his influence on modern society. Some, like his famous experiment proving lightning was electricity, are mostly accurate—though perhaps a bit embellished. Others, like his supposed recommendation for Daylight Saving Time, are more myth than history.

Daylight Saving Time and its twice-yearly changes remain controversial to this day. The origin story begins with Franklin, who "recommended" it in a satirical letter to a French newspaper's editor. In this tongue-in-cheek piece, he extolled the virtues of waking earlier to save on candles and lamp oil.

Ironically, despite Franklin's satirical intent, DST was eventually adopted worldwide—not merely for saving candle wax, but for conserving energy during World War I. While history still debates whether DST achieves its energy-saving goals, I can say with certainty that this past Monday it didn't save me any energy. Here's the tale of how Franklin's satirical "recommendation" ended up breaking our CI tests in an unexpected and amusing way!

A timely mystery

As part of my job as CTO of AuthZed, I often work on improvements to SpiceDB, our open source implementation of the Google Zanzibar paper. On Monday morning, after gaining a delightful extra hour of sleep due to the “fall back” of Daylight Savings, I created a PR to make some very small changes to how SpiceDB handles its recently added transaction metadata feature.

Unfortunately, despite my changes not impacting the computation of revisions at all, a particular test (CheckRevisionsTest) in the MySQL datastore test suite immediately started to fail.

At first, I thought an unrelated change in the datastore might be the cause, but then our team started to notice this failure on other changes, including when we reran code merged on main last week; this was especially odd because our merge process runs the full test suite before merging… and the test was now consistently failing on all runs!

Sensing a mystery afoot, I began to debug the underlying issue that was occurring.

Background

SpiceDB is a permissions database based on the ReBAC or Relationships-based access control paradigm. A permission is granted if and only if there exists a path of relationships connecting the resource+permission (e.g. document#view) and the subject (e.g. user:tom) in a graph formed by the relationship data and any expressions defined in the schema. The relationships used to compute permissions are stored in an underlying database such as Postgres, CRDB or MySQL, which SpiceDB calls a datastore.

One of the most important aspects of a ReBAC permissions system is that of consistency: in order to guarantee reasonable performance while also ensuring that permissions do not grow too stale, all permissions queries made to SpiceDB (like CheckPermission) specify a consistency block that allows the caller to specify whether they want better performance (with some staleness) or less staleness (at the cost of not being able to use the cache). This is practically implemented in SpiceDB by having every API call select a revision or point-in-time at which the entire set of required relationships is loaded when computing a result.

Each revision selected has to be validated against the underlying datastore to ensure that the datastore can return the relationships found at that specific point-in-time: afterall, if a revision of, say, 3 weeks ago was requested, the datastore would be unable to return the state of the relationships at that time, and thus has to return an error.

To do so, each datastore implements the CheckRevision method, which takes in a specific revision (point-in-time) and checks that the revision is still valid, i.e. it has not moved beyond the configured window of validity.

The test that was failing due to CheckRevision returning the revision as invalid… despite having been created by the same test no more than a second ago. It was time to put on my bifocals and begin an investigation!

Starting the investigation

The very first step I performed was running the test locally to see if I could reproduce the failure.

Running the test, however, produced no failure whatsoever:

$ cd internal/datastore/mysql
$ go test ./... -tags ci,docker -count=1 -run TestMySQL8Datastore/TestCheckRevisions -v

ok

This was, to say the least, quite strange.

Thinking the problem might be related to running tests in parallel, I reran the full test suite for MySQL:

$ go test ./... -run TestMySQL8Datastore/ -tags ci,docker -count=1 -run TestMySQL8Datastore/ -v

FAIL: TestMySQL8Datastore/TestCheckRevisions

Which immediately failed. So something amongst the various tests in the suite was causing a failure. However, removing t.Parallel did not fix the problem.

This led me to believe that something was broken in the test or the MySQL datastore implementation itself… Yet no one in the SpiceDB project had made any changes related to the datastores in SpiceDB since Friday… and the test failure was consistent.

What was the key to this mystery?

Debugging CheckRevision in MySQL

For the MySQL datastore, revisions are stored in a relation_tuple_transaction table, with the time used stored in a timestamp column:

CREATE TABLE relation_tuple_transaction (
		id BIGINT UNSIGNED NOT NULL AUTO_INCREMENT,
		timestamp DATETIME(6) DEFAULT NOW(6) NOT NULL,
		PRIMARY KEY (id),
        INDEX ix_relation_tuple_transaction_by_timestamp (timestamp)) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;

When a revision is checked, the following query is executed, returning whether the revision’s timestamp is within the required window:

		SELECT $revision_id >= COALESCE((
			SELECT MIN(id)
			FROM   relation_tuple_transaction
			WHERE  timestamp >= TIMESTAMPADD(SECOND, -$window_in_seconds, UTC_TIMESTAMP(6))
		),(
		    SELECT MAX(id)
		    FROM relation_tuple_transaction
		    LIMIT 1
		)) as fresh, $revision_id > (
			SELECT MAX(id)
			FROM   timestamp
		) as unknown;`

As we can see above, the SQL query returns two boolean values, with the first boolean being the important one here: the first boolean is true if and only if the revision_id is greater or equal to the least recently “alive” revision or is equal to the latest revision.

In practical terms, this query ensures that the revision is still alive by ensuring that it is within the “window” revisions considered alive by $window_in_seconds.

Despite the revision having been created by the same test no more than 1 second ago, this query was failing to return true.

Looking at the test itself, we can see that the window_in_seconds was set to 300*time.Minute, or 5 hours, which should be more than enough time for the test to run:

ds, err := tester.New(0, 1000*time.Second, 300*time.Minute, 1)

Wanting to know why the call was failing, I added code to the test to select the timestamp and adjustment for all revisions:

select id, timestamp, TIMESTAMPADD(SECOND, -18000.000000, UTC_TIMESTAMP(6)) from relation_tuple_transaction

However, running this query returned truly bizarre results:

idtimestampcomputed
11969-12-31 19:00:01 +0000 UTC2024-11-04 17:21:46.926416 +0000 UTC
22024-11-04 17:21:46.914328 +0000 UTC2024-11-04 17:21:46.926416 +0000 UTC
32024-11-04 17:21:46.922334 +0000 UTC2024-11-04 17:21:46.926416 +0000 UTC

Somehow, the computed result of TIMESTAMPADD was later than the timestamp for the most recent revision, which was written only a few milliseconds ago.

Further, changing the delta from -18000 seconds to -122 seconds (chosen at random) showed the time moving forward

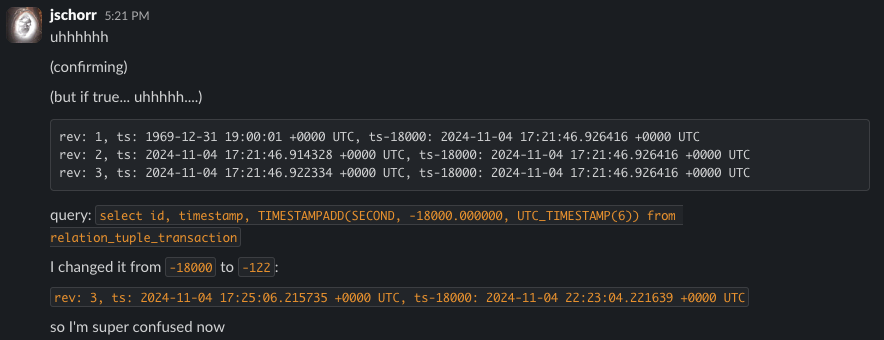

My reaction, to say the least, was one of befuddlement:

(actual Slack messages I sent when I first saw this output)

Was time just… broken in MySQL all of sudden? I had not changed the version of MySQL used, so what could have caused this change?

Trying to isolate the time issue on MySQL, I next ran now as part of the test, both as part of the unified test suite and the single test.

Needless to say, this gave me my first confirmation that time was indeed the issue:

(yes, I wrote “this is going to be a fun blog post” at the time)

Now the question was to find how the time zone was changing in the test suite. A cursory search immediately landed me on a test which does, in fact, change the timezone, ironically to ensure timezones don’t impact revision calculations!

_, err := db.ExecContext(ctx, "SET GLOBAL time_zone = 'America/New_York';")
req.NoError(err)

With the source now figured out, the solution to the test suite failure was straightforward: simply move this one test to run against an isolated instance of MySQL, rather than the same instance being used by the remainder of the test suite, ensuring the global timezone change did not impact any other tests running.

However, this still left a bit of a mystery remaining: why did the test only start failing after the daylight savings time changed this past weekend?

Concluding the mystery

Recall the code used for testing a revision being valid:

ds, err := tester.New(0, 1000*time.Second, 300*time.Minute, 1)

The window chosen for the test is 300 minutes or… 5 hours, the exact same delta that the America/New_York timezone now had as per Eastern Standard Time.

Before the fallback from Eastern Daylight Time, the timezone delta from UTC had been 4 hours, thus giving the test an hour-long “window” accidentally. When daylight savings ended and we moved back to Standard Time, the delta became 5 hours, exactly matching the test’s configured window by accident, ensuring that the revision would be considered out of date… by milliseconds.

The test had previously succeeded by accident, only functioning because Franklin had published a letter many decades ago.

Takeaways

Daylight savings time continues to be an everlasting source of fun and bugs for us software engineers. However, we can also glean another important lesson that Franklin taught: taking a scientific and standardized approach to learning new information.

By using a consistent approach to debugging the test, we were able to take an otherwise confusing and somewhat bizarre failure and turn it into a manageable series of steps:

  • Try to get a consistent repro of the bug, ideally on your local machine
  • Narrow the conditions for achieving the repro as much as possible
  • Change one condition at a time and observe changes in behavior
  • Once a suspicious condition has been identified, try to find the root cause

When I was studying software engineering at Penn, never did I dream that my university’s founder would one day “directly” cause an impacting issue in software that I wrote. Fortunately, the impact was minimal, and we now have another great story of our own on the adventure of building SpiceDB!
